C++ CLI Tooling¶

A short tour of the ideas behind command-line tools in modern C++ — a clean input/output contract, a CMake target graph, a pure logic core wrapped in a thin I/O shell, a library-parsed configuration surface, and disciplined error reporting. These patterns show up in almost every production project, from embedded firmware to million-line desktop applications, and once they become reflexive they scale without changing shape.

1. What a CLI Tool Is¶

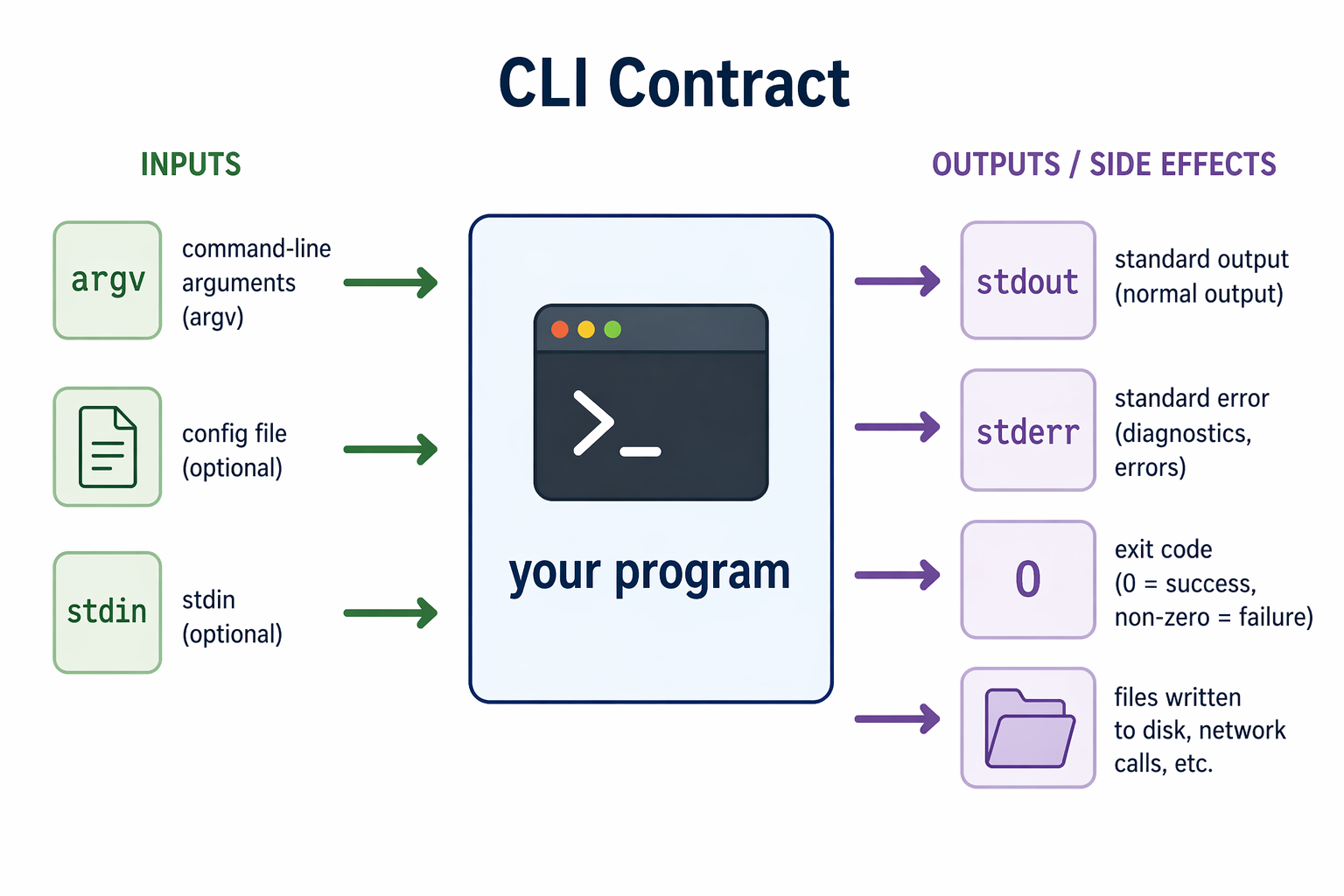

A command-line tool talks to the outside world through a deliberately small interface — a handful of input channels (argv, config files, stdin), a few output channels (stdout, stderr, an exit code), and whatever side effects it chooses to have on disk or the network.

The contract is simple on purpose. It makes CLI tools composable — you can pipe them together, script them, call them from CI, and automate them — as long as you respect the conventions. A program that prints errors to stdout or exits 0 on failure breaks scripts silently, which is worse than crashing loudly.

Three layers of configuration are common, in order of precedence:

1. Command-line flags — per-invocation overrides (--verbose, --port 8080)
2. Config files — persistent settings, versioned alongside code (INI, TOML, YAML, JSON)
3. Defaults — what the program does when you give it nothing

Good tools let you override anything from the layer above.

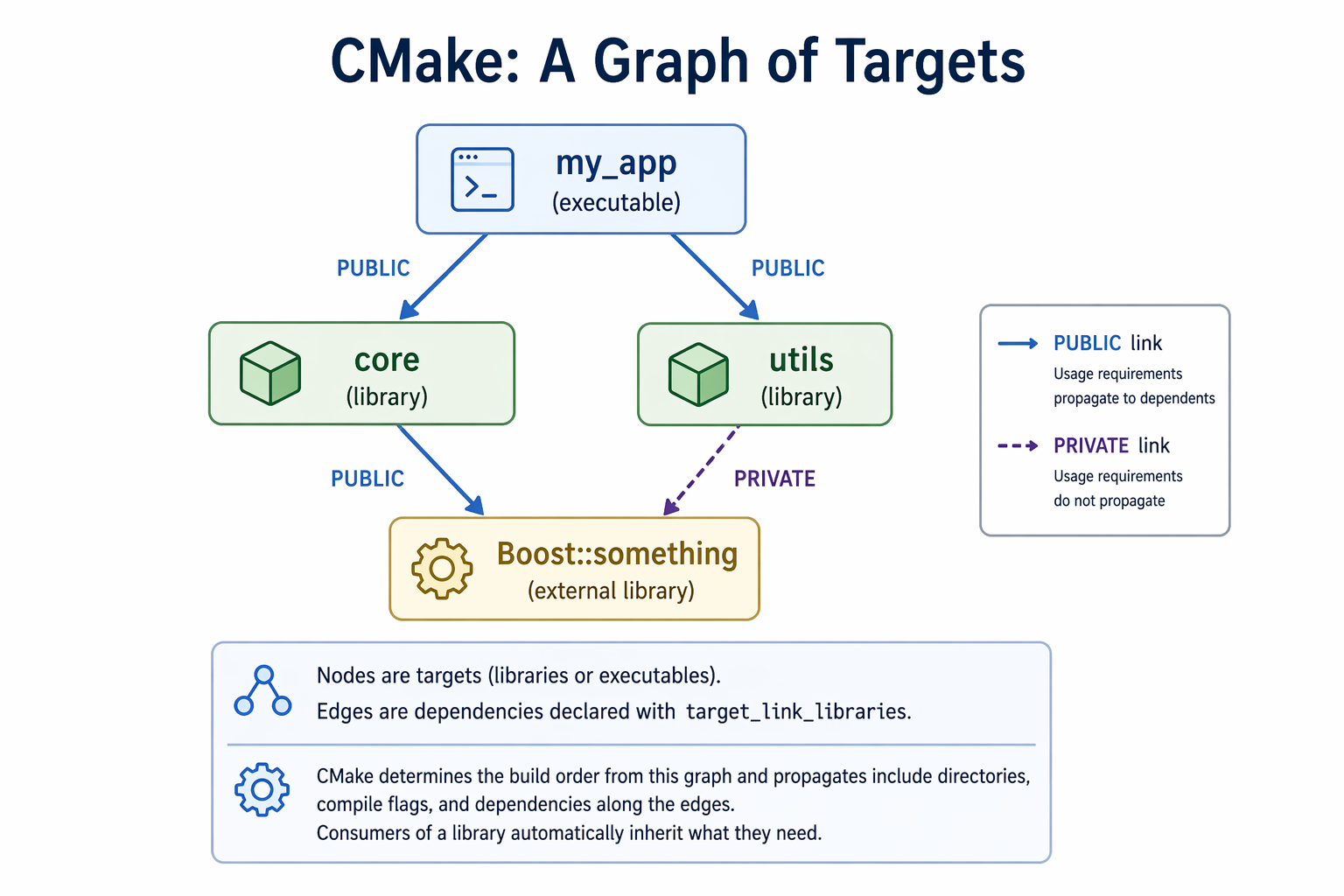

2. CMake: A Graph of Targets¶

The biggest mental shift in modern C++ is moving from "compile a bunch of files" to thinking in targets. A CMake project is a graph whose nodes are targets — libraries (add_library) or executables (add_executable) — and whose edges are dependencies declared with target_link_libraries.

CMake figures out the build order from the graph. It also propagates include directories, compile flags, and dependencies along the edges, so consumers of a library automatically inherit what they need.

In this graph, a PUBLIC link means a dependency becomes part of a target’s exposed interface, so anything that depends on that target also inherits its include paths, compile settings, and linked libraries. A PRIVATE link means the dependency is only used internally by that target and does not propagate to downstream consumers. In the diagram, core publicly exposes its dependency on Boost::something, while utils uses Boost only as an internal implementation detail.

A minimal example:

cmake_minimum_required(VERSION 3.15)
project(my_app CXX)
set(CMAKE_CXX_STANDARD 17)

add_library(core src/core.cpp)
target_include_directories(core PUBLIC include)

add_executable(my_app src/main.cpp)
target_link_libraries(my_app PRIVATE core)

3. Pulling in External Libraries¶

Real C++ projects rarely live in isolation — they pull in libraries like Boost, Eigen, fmt, spdlog, or gRPC. CMake's find_package locates an installed library on your system and exposes it as one or more imported targets you can link against:

find_package(Boost REQUIRED COMPONENTS program_options)

target_link_libraries(my_app PRIVATE Boost::program_options)

The Boost::program_options target carries its include paths, compile definitions, and link flags with it. You don't hand-manage header search paths or -l flags.

If the package is missing, CMake fails at the configure step with a useful message. That's what you want — failing early at configure time is much friendlier than failing later at link time with a cryptic error.

4. Parsing Arguments and Config Files¶

You can parse argv by hand. Don't. Use a library. The general pattern across every options library in every language is the same three steps:

1. Describe the options you accept (name, type, default, help text).
2. Parse an input source (argv, a config file, or both) into a parsed map.
3. Query values out by name, with types enforced.

In C++, Boost.Program_options is a standard choice. It handles short and long flags, defaults, required values, and conveniently uses the same options_description to parse INI-style config files too. Declare your options once, parse whatever sources you need into a variables_map, then read values out of it.

The important habit is separating "what options exist" from "where they came from." A user shouldn't have to care whether --port 8080 arrived via a flag, a config file, or a default. The library handles that for you.

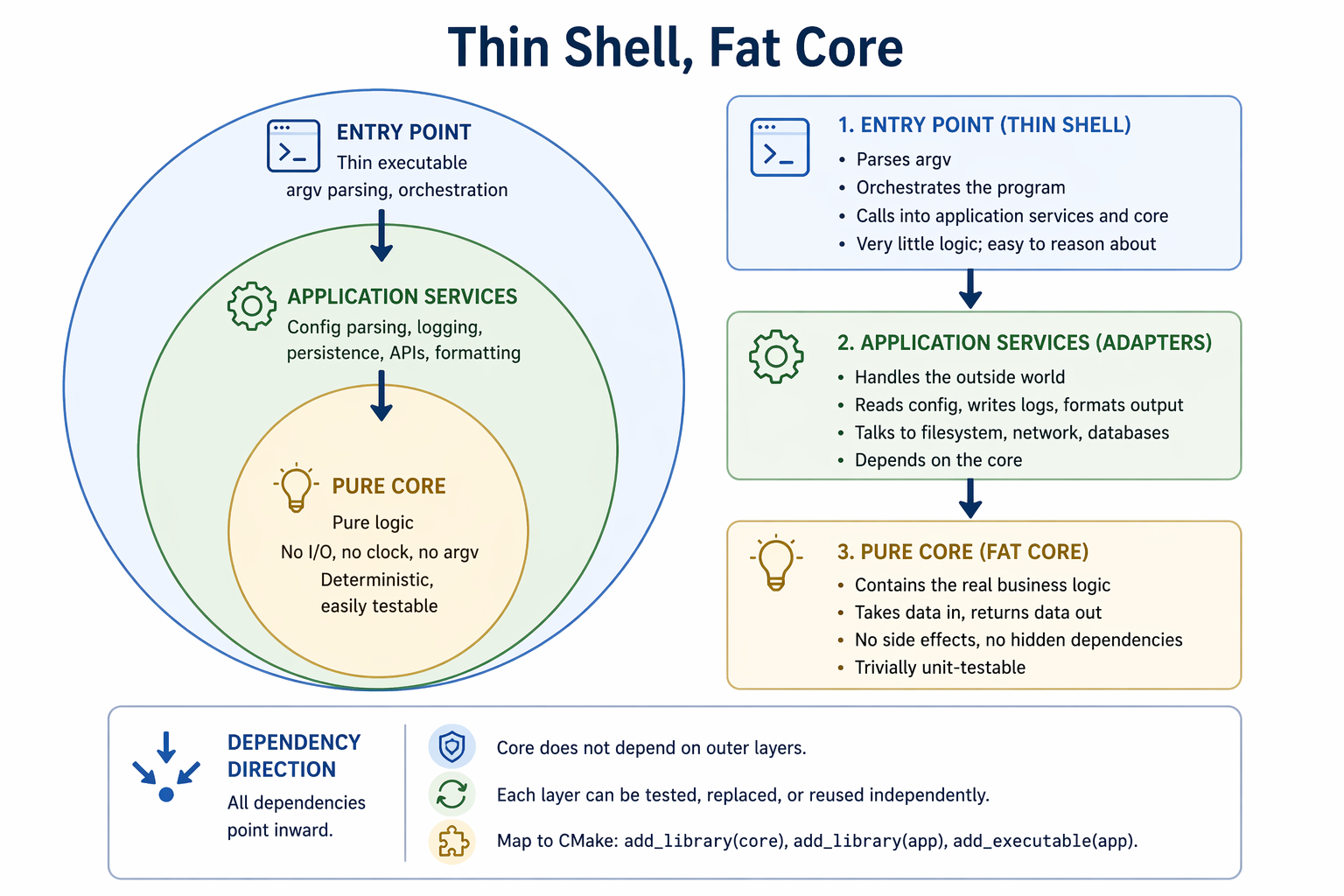

5. Thin Shell, Fat Core¶

The most durable architectural pattern in CLI tools — and in most software — is to keep your core logic pure and your I/O at the edges.

A well-structured CLI typically separates into three layers: a pure core of deterministic business logic with no filesystem, clock, network, or argv dependencies; an application-services layer of adapters that handle config, logging, persistence, formatting, and external APIs; and a thin executable — a minimal entry point that parses arguments, wires dependencies together, and invokes the core.

Dependencies flow inward: outer layers depend on inner layers, but the core depends on nothing external. That's what keeps the business logic reusable, testable, and portable across interfaces. In CMake it maps naturally to separate targets — one add_library for the core, one for services, and a small add_executable at the boundary.

6. Errors and Exit Codes¶

A final set of Unix conventions worth drilling in:

• Exit 0 on success, non-zero on failure. Scripts, CI, and other programs depend on this. A silent non-zero is fine; a loud 0 after a crash is a bug.
• Diagnostics and errors go to stderr, not stdout. Normal output goes to stdout. Mixing them up breaks piping and makes failures invisible to automation.
• Errors should say what went wrong and, if possible, what to do about it. "Config file 'foo.ini' not found" is useful. "Error" is not.

The typical C++ idiom is to wrap main's body in a try block, catch std::exception and any library-specific error types, print to std::cerr, and return 1:

int main(int argc, char** argv) {
    try {
        // ... real work here
        return 0;
    } catch (const std::exception& e) {
        std::cerr << "error: " << e.what() << "\n";
        return 1;
    }
}

This one pattern covers the vast majority of CLI error-handling needs.

Assignment¶

Apply these ideas in a small simulation: the Satellite Temperature Monitor — a C++/CMake project that reads two redundant sensors, averages them each step, and flags out-of-range faults. Target names, CLI forms, and output files are spec'd so the autograder can check your work on every push. The repo ships with a run_tests.py script that runs those same tests locally (python3 run_tests.py) — the GitHub Actions workflow just invokes it too, so local pass = CI pass.

If you're enrolled at Georgia Tech: accept the assignment through the GitHub Classroom invite. Classroom will create your personal repo under the gtcloudrobotics org — clone that repo (not the public template) and work there. Results auto-report to the instructor dashboard as your grade.

If you're not enrolled: go to gtcloudrobotics/satellite-temperature-monitor, click Use this template to make your own copy, then clone and push. The autograder runs on every push; you'll see pass/fail in the Actions tab.
